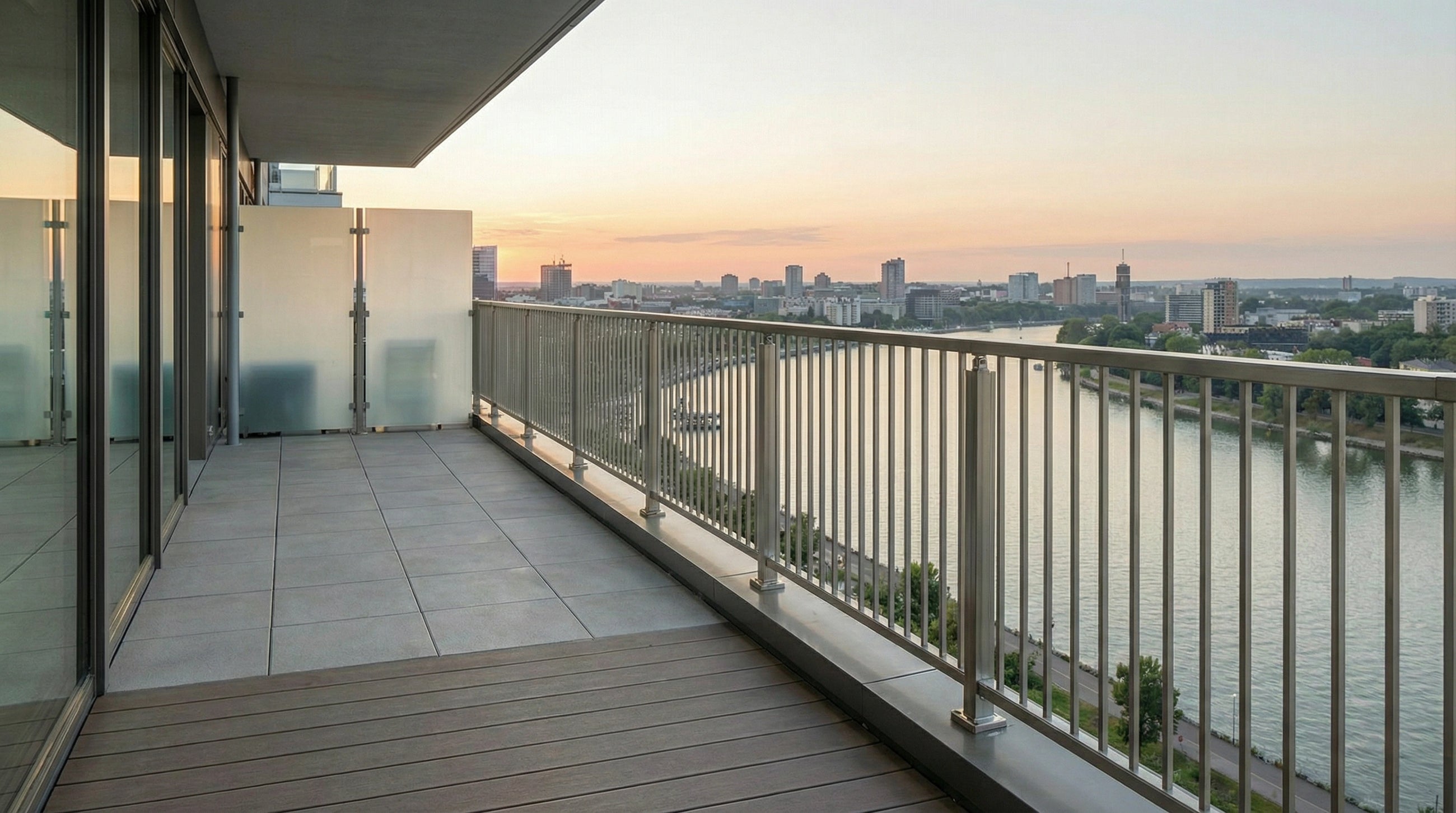

RB-SQ09 Square Picket Aluminum Railing
A code-compliant square-profile guardrail system with vertical aluminum pickets, engineered for safety, durability, and clean architectural lines in residential and commercial spaces.
- LED Capable
- ICC/IBC Certified
- Any RAL Color Available

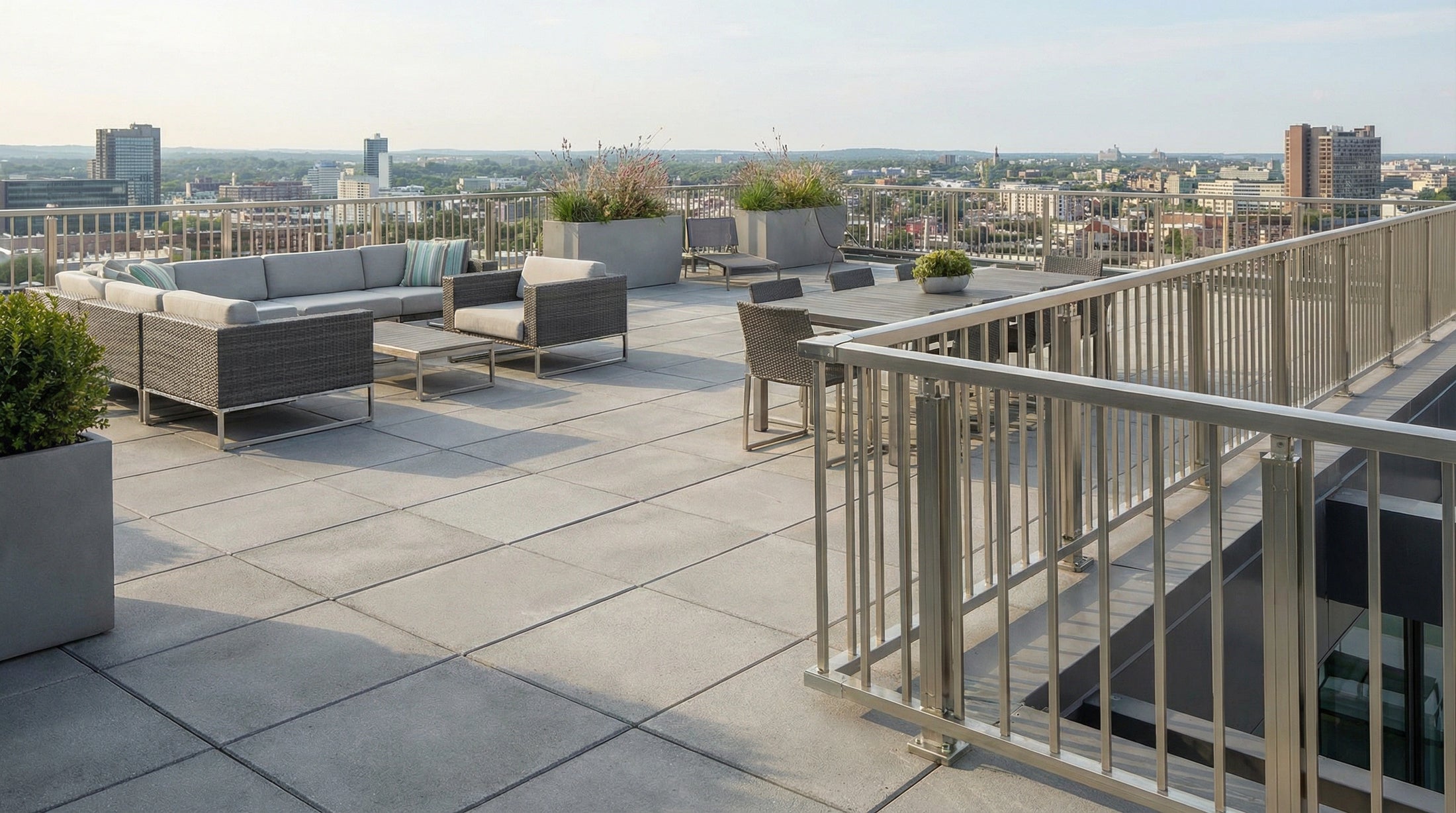

Product Overview
Product Overview
RB-SQ09 is a square-profile aluminum railing system engineered for guardrail and fall-protection applications that must comply with IBC and ASTM structural load requirements. Featuring extruded aluminum posts, continuous top rails, and vertical pickets, the system delivers high rigidity, corrosion resistance, and long-term durability in both interior and exterior environments.
The vertical picket infill maintains clean architectural lines while ensuring code-compliant spacing for safety. Precision mechanical fastening allows efficient field installation and secure anchorage to concrete, wood, or steel substrates. Available in a full range of RAL powder-coat finishes, RB-SQ09 is a versatile solution for balconies, decks, walkways, and commercial building applications requiring reliable performance and modern design.
Unmatched Durability
Feature copy goes here.
Infinite Customization
Feature copy goes here.
Streamlined Installation
Feature copy goes here.
Premium Finishes & Color Options
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain look
Technical Specifications
Complete technical data for architectural planning and code compilance verification.
- System Height Range
- 36"–42" (914mm–1067mm)
- Maximum Span
- 6' (1829mm)
- Post Spacing
- 4'–6' (1219mm–1829mm
- Load Capacity
- 200 lbs linear foot
- Mesh Opening
- 36"–42" (914mm–1067mm)
- Mesh Thickness
- 36"–42" (914mm–1067mm)
- Material Grade
- Stainless Steel 304 / 316
- Code Compliance
- ICC, IBC, CBC, FBC
- Wind Load Rating
- 150 mph (241 km/h)
- Warranty
- 10 Years Limited
Download Resources
Access all technical documentation, CAD files, and installation guides.
Infills and patterns
From laser-cut panels to classic cable and mesh, our infill options provide both safety and style. Customize patterns and materials to match your aesthetic.
-
Compatible with M-07
-
Compatible with G-02
-
Compatible with M-04
-
Compatible with M-09
-
Compatible with M-01
-
Compatible with G-01
