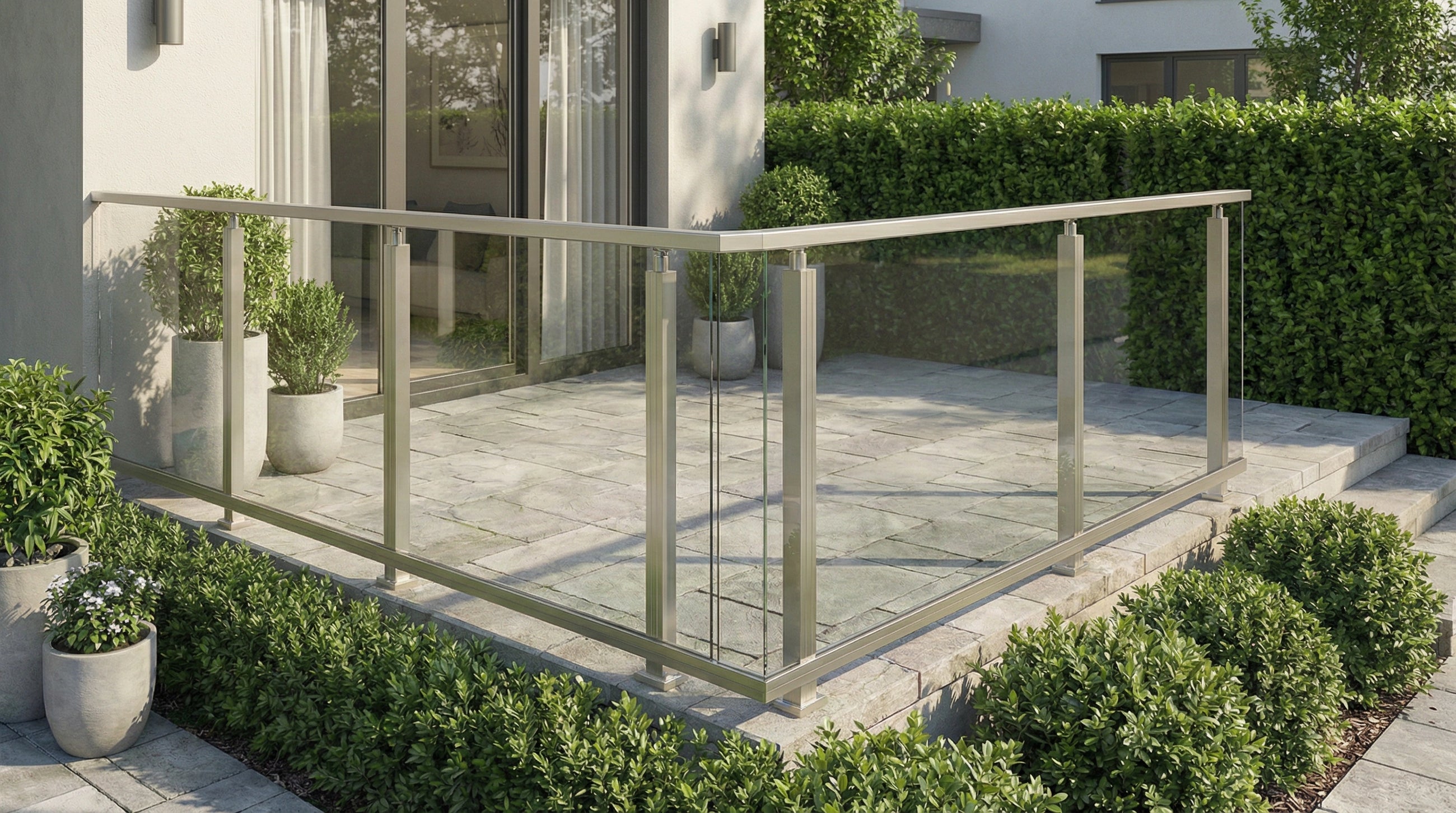

RB-SQ05 Modular Aluminum Guardrail
A high-performance post-mounted railing system designed for glass and custom infill panels, delivering strength, flexibility, and refined architectural expression for modern spaces.
- LED Capable
- ICC/IBC Certified
- Any RAL Color Available

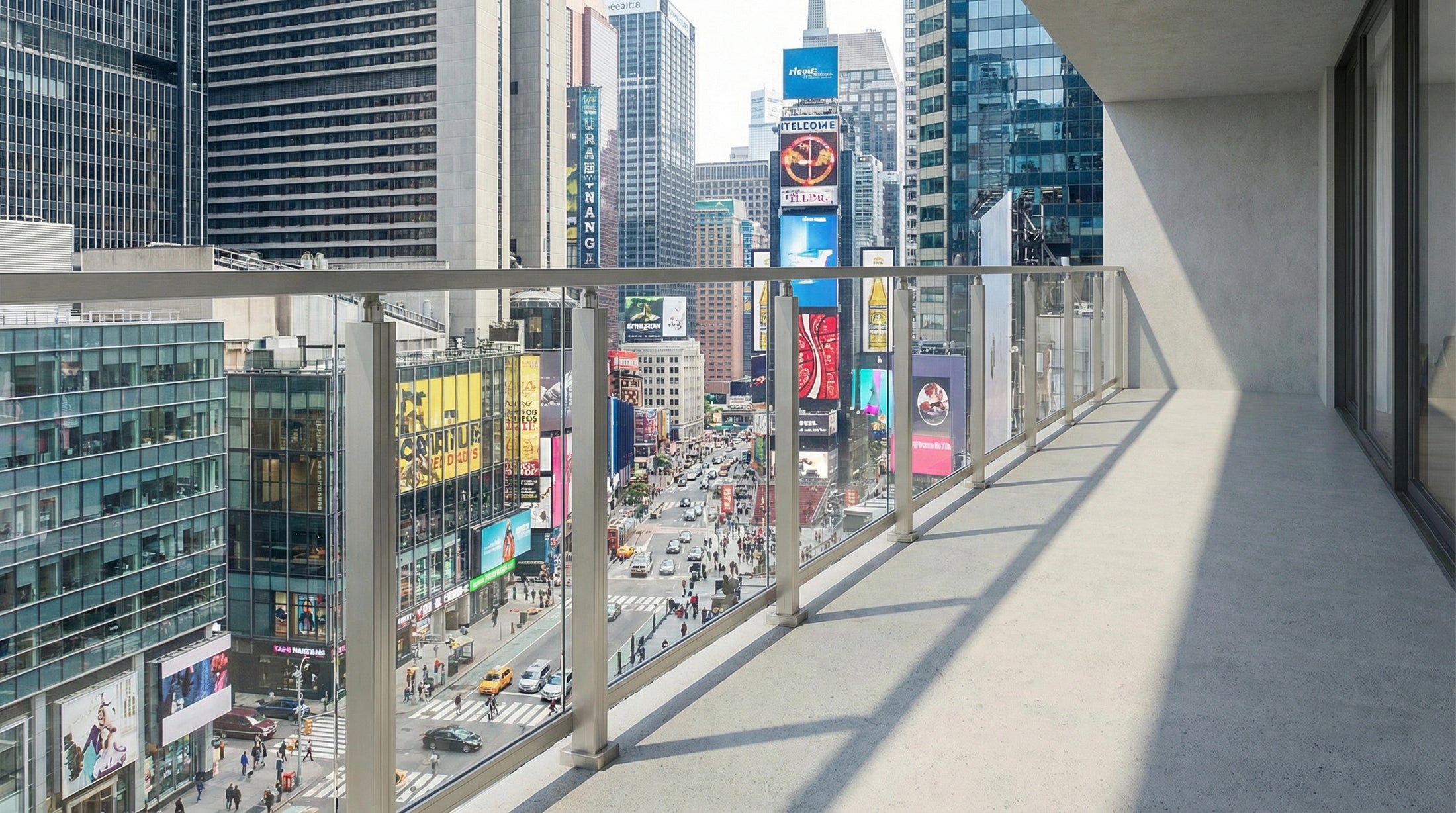

Product Overview
Product Overview
RB-SQ05 is a modular, post-mounted aluminum guardrail system engineered to meet IBC and ASTM load requirements for both residential and commercial applications. Built around high-strength extruded aluminum posts, the system delivers excellent rigidity, impact resistance, and long-term performance in exterior environments.
Designed for maximum design flexibility, RB-SQ05 supports a wide range of infill options, including tempered laminated glass, laser-cut aluminum panels, perforated metal, and solid aluminum sheets, all available in custom RAL powder-coated finishes. Precision anchorage hardware and a continuous top rail enhance structural stability and resistance to elevated wind loads. RB-SQ05 is an ideal solution for balconies, podium decks, egress pathways, and contemporary architectural projects requiring durability, safety, and refined aesthetics.
Unmatched Durability
Feature copy goes here.
Infinite Customization
Feature copy goes here.
Streamlined Installation
Feature copy goes here.
Premium Finishes & Color Options
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain look
Technical Specifications
Complete technical data for architectural planning and code compilance verification.
- System Height Range
- 36"–42" (914mm–1067mm)
- Maximum Span
- 6' (1829mm)
- Post Spacing
- 4'–6' (1219mm–1829mm
- Load Capacity
- 200 lbs linear foot
- Mesh Opening
- 36"–42" (914mm–1067mm)
- Mesh Thickness
- 36"–42" (914mm–1067mm)
- Material Grade
- Stainless Steel 304 / 316
- Code Compliance
- ICC, IBC, CBC, FBC
- Wind Load Rating
- 150 mph (241 km/h)
- Warranty
- 10 Years Limited
Download Resources
Access all technical documentation, CAD files, and installation guides.
Need Custom Documentation?
Contact our engineering team for project-specific drawings, load calculations, or custom specifications.
Infills and patterns
From laser-cut panels to classic cable and mesh, our infill options provide both safety and style. Customize patterns and materials to match your aesthetic.
-
Compatible with M-07
-
Compatible with G-02
-
Compatible with M-04
-
Compatible with M-09
-
Compatible with M-01
-
Compatible with G-01
