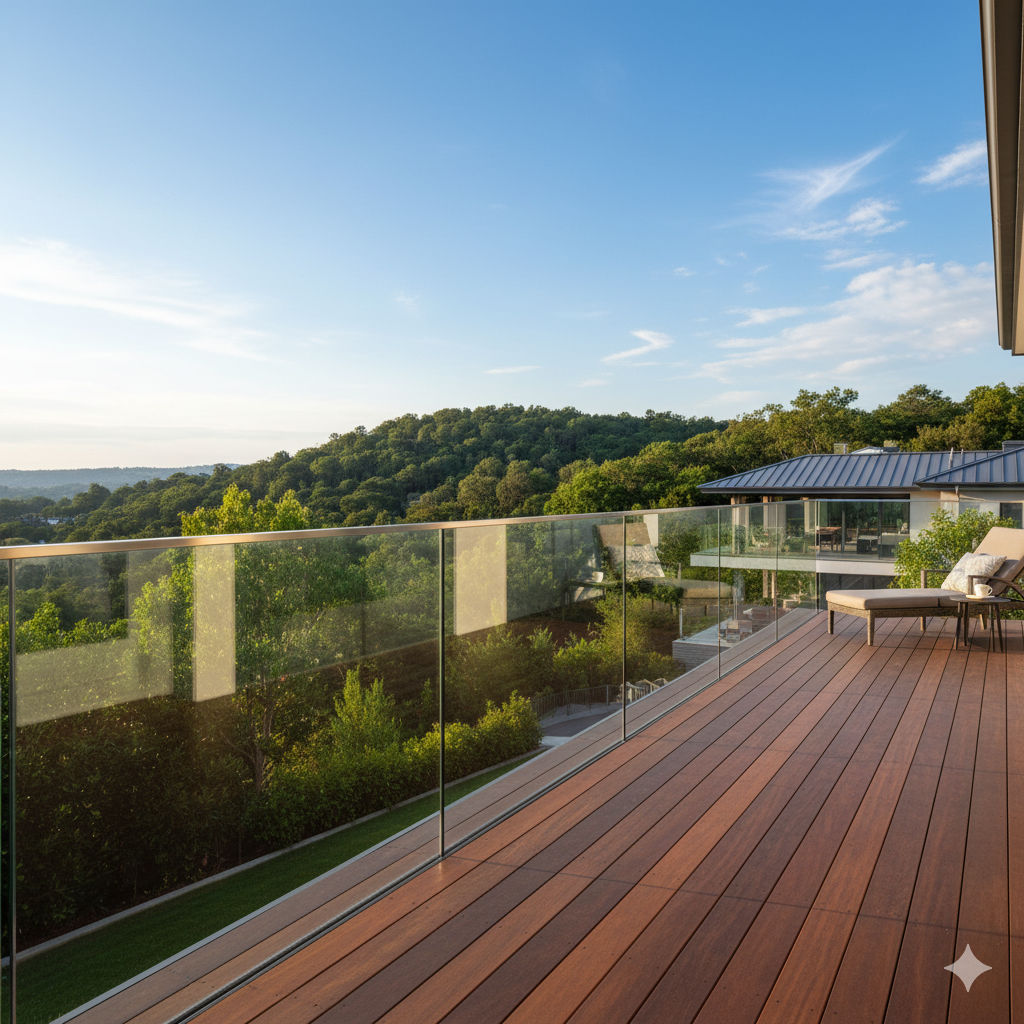

RB-GL03G In-Grade Glass Railing System
A concealed, high-performance base-shoe solution engineered for laminated glass, delivering superior load resistance, precise alignment, and clean architectural sightlines.
- LED Capable
- ICC/IBC Certified
- Any RAL Color Available
Product Overview
Product Overview

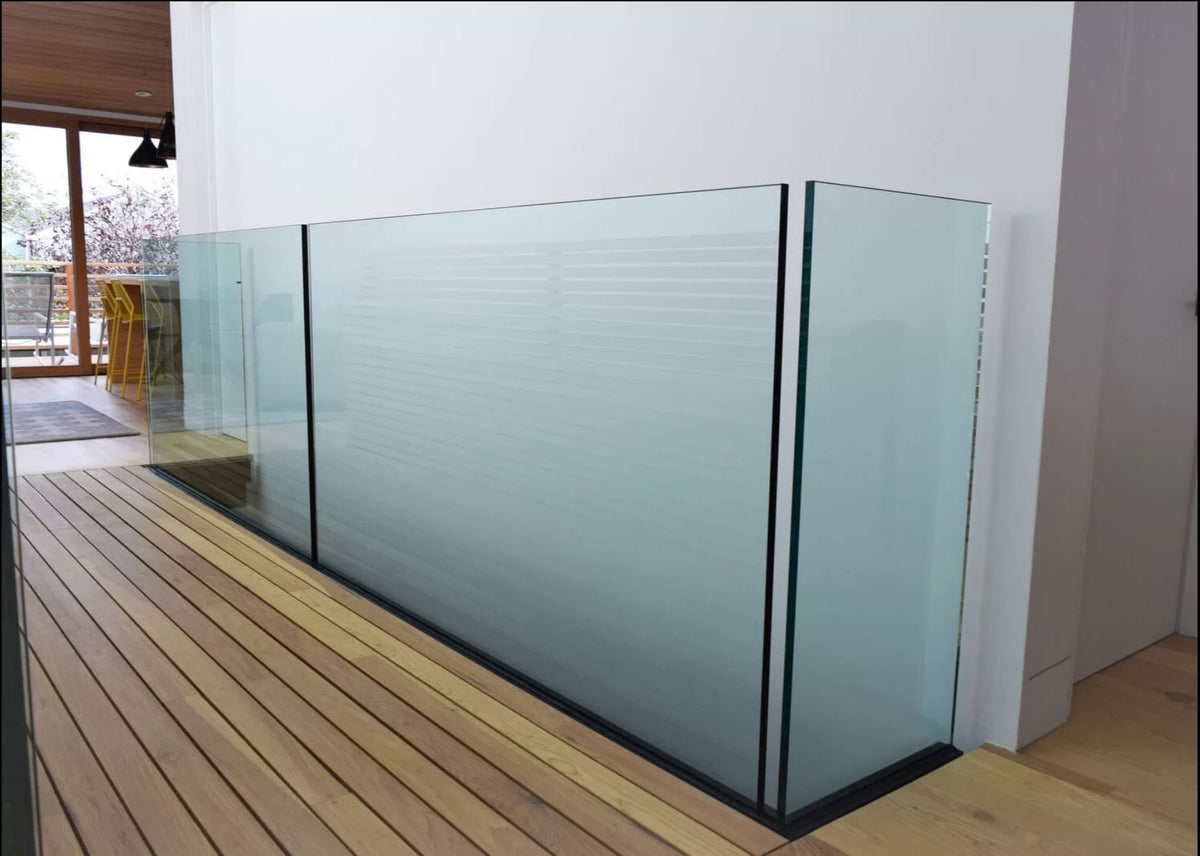

RB-GL03G is an in-grade structural glass railing system engineered for tempered laminated glass in high-performance guardrail and fall-protection applications. Installed within concrete or grout pockets, its concealed aluminum base shoe delivers enhanced anchorage, superior load transfer, and precise deflection control under IBC and ASTM requirements.
The reinforced extrusion supports common laminated glass configurations and features integrated mechanical adjustment for accurate post-installation alignment. With its buried, low-visibility design, RB-GL03G provides clean, uninterrupted sightlines while maintaining exceptional structural performance. It is an ideal solution for balconies, roof decks, podium slabs, and commercial perimeter protection in both interior and exterior environments.
Unmatched Durability
Feature copy goes here.
Infinite Customization
Feature copy goes here.
Streamlined Installation
Feature copy goes here.
Premium Finishes & Color Options
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain look
Technical Specifications
Complete technical data for architectural planning and code compilance verification.
- System Height Range
- 36"–42" (914mm–1067mm)
- Maximum Span
- 6' (1829mm)
- Post Spacing
- 4'–6' (1219mm–1829mm
- Load Capacity
- 200 lbs linear foot
- Mesh Opening
- 36"–42" (914mm–1067mm)
- Mesh Thickness
- 36"–42" (914mm–1067mm)
- Material Grade
- Stainless Steel 304 / 316
- Code Compliance
- ICC, IBC, CBC, FBC
- Wind Load Rating
- 150 mph (241 km/h)
- Warranty
- 10 Years Limited
Download Resources
Access all technical documentation, CAD files, and installation guides.
Need Custom Documentation?
Contact our engineering team for project-specific drawings, load calculations, or custom specifications.
Infills and patterns
From laser-cut panels to classic cable and mesh, our infill options provide both safety and style. Customize patterns and materials to match your aesthetic.
-
Compatible with M-07
-
Compatible with G-02
-
Compatible with M-04
-
Compatible with M-09
-
Compatible with M-01
-
Compatible with G-01
